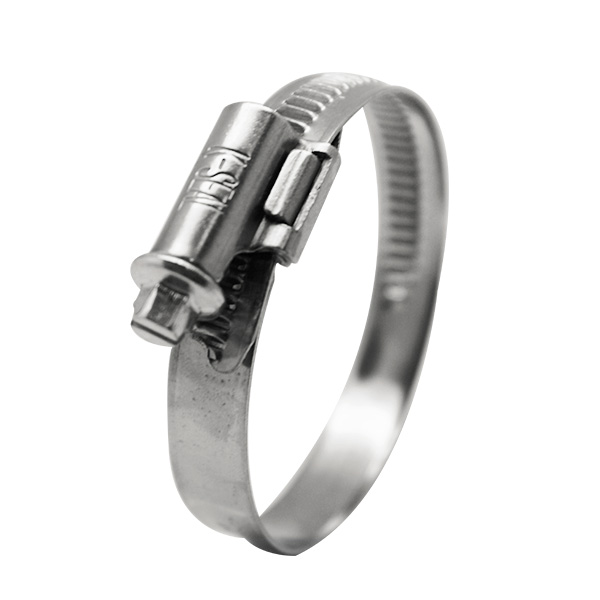

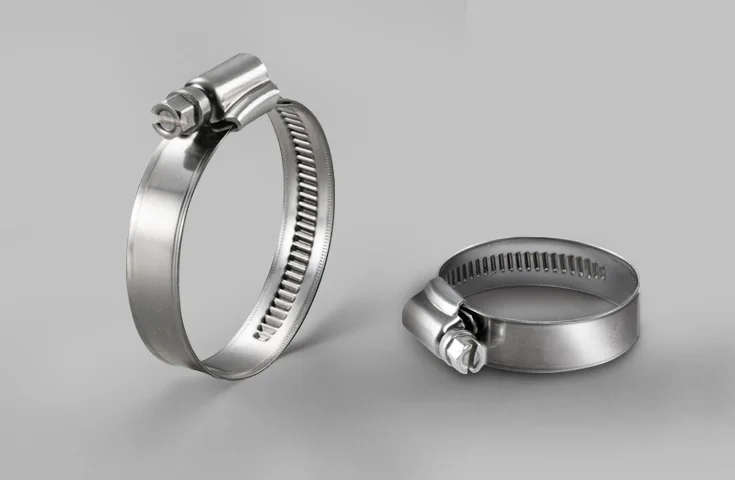

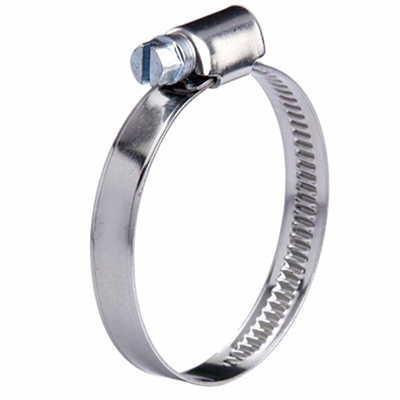

High Performance Germany Type Hose Clamp

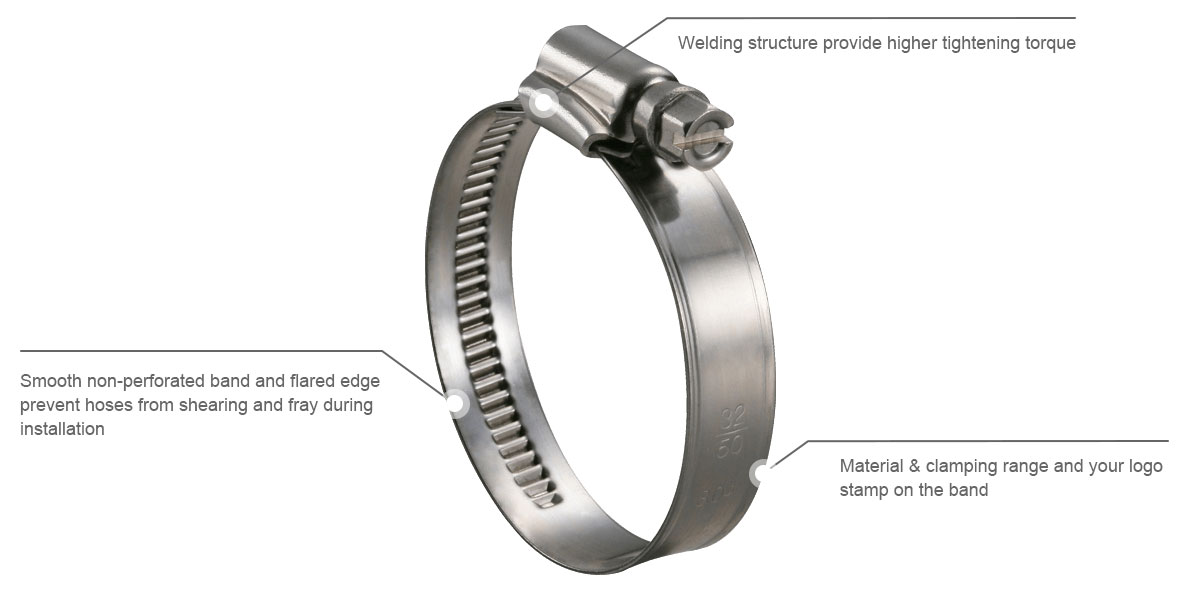

High performance with super torque strength
Provide an extra-tight seal
Non symmetric housing prevents clamp tilt when fastening

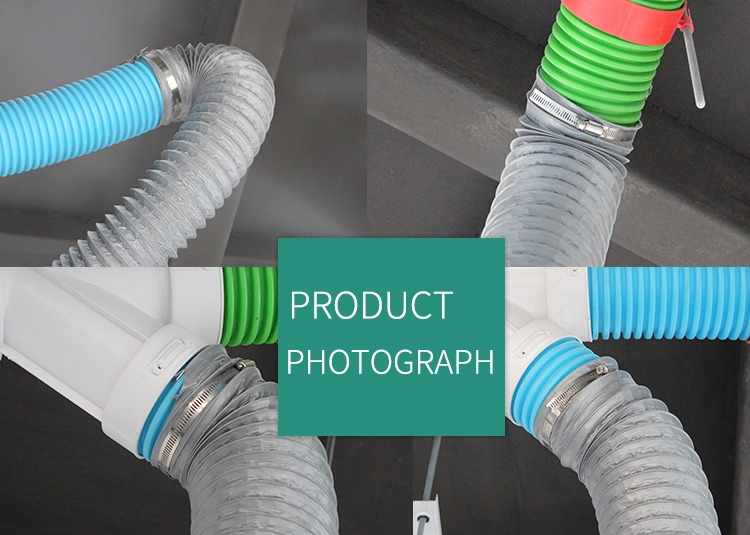

The high performance embossed worm clamps are suited to applications with high loading torque requirement, including cooling system and hydraulic circuit in automobile, machinery manufacturing, top engineering, shipbuilding etc.
| K-SEAL code | Band | Housing | Screw | Corrosion Resistance | Suggest Installation Torque(Nm) |
| KPEBMXX(W2) | 201 SS | 201 SS | galvanized steel | Good | See table |
| KPEBGXXSS | AISI 304 SS | AISI 304 SS | AISI 304 SS | Better | See table |
| KPEBLXXSS | AISI 316 SS | AISI 316 SS | AISI 316 SS | Best | See table |
| Part Number W2material |
Part Number W4 material |
Part Number W5material |
Diameter Range(mm) | Installation Torque(N.m) | QTY/Carton |
| KPEBM9X012 | KPEBG9X012SS | KPEBL9X012SS | 8-12 | 3.0 | 1000 |
| KPEBM9X016 | KPEBG9X016SS | KPEBL9X016SS | 10-16 | 3.0 | 500 |
| KPEBM9X020 | KPEBG9X020SS | KPEBL9X020SS | 12-20 | 3.0 | 500 |
| KPEBM9X025 | KPEBG9X025SS | KPEBL9X025SS | 16-25 | 3.0 | 500 |
| KPEBM9X032 | KPEBG9X032SS | KPEBL9X032SS | 20-32 | 4.5 | 500 |
| KPEBM9X040 | KPEBG9X040SS | KPEBL9X040SS | 25-40 | 4.5 | 500 |
| KPEBM9X050 | KPEBG9X050SS | KPEBL9X050SS | 32-50 | 4.5 | 500 |
| KPEBM9X060 | KPEBG9X060SS | KPEBL9X060SS | 40-60 | 4.5 | 400 |
| KPEBM9X070 | KPEBG9X070SS | KPEBL9X070SS | 50-70 | 4.5 | 400 |
| KPEBM9X080 | KPEBG9X080SS | KPEBL9X080SS | 60-80 | 4.5 | 400 |
| KPEBM9X090 | KPEBG9X090SS | KPEBL9X090SS | 70-90 | 4.5 | 400 |
| KPEBM9X100 | KPEBG9X100SS | KPEBL9X100SS | 80-100 | 4.5 | 400 |
| KPEBM9X110 | KPEBG9X110SS | KPEBL9X110SS | 90-110 | 4.5 | 300 |
| KPEBM9X120 | KPEBG9X120SS | KPEBL9X120SS | 100-120 | 4.5 | 300 |
| KPEBM9X130 | KPEBG9X130SS | KPEBL9X130SS | 110-130 | 4.5 | 300 |
| KPEBM9X140 | KPEBG9X140SS | KPEBL9X140SS | 120-140 | 4.5 | 300 |
| KPEBM9X150 | KPEBG9X150SS | KPEBL9X150SS | 130-150 | 4.5 | 200 |
| KPEBM9X160 | KPEBG9X160SS | KPEBL9X160SS | 140-160 | 4.5 | 200 |
| Part Number W2material |
Part Number W4 material |
Part Number W5material |
Diameter Range(mm) | Installation Torque(N.m) | QTY/Carton |
| KPEBM12X012 | KPEBG12X012SS | KPEBL12X012SS | 8-12 | 6.0 | 1000 |
| KPEBM12X016 | KPEBG12X016SS | KPEBL12X016SS | 10-16 | 6.0 | 500 |
| KPEBM12X020 | KPEBG12X020SS | KPEBL12X020SS | 12-20 | 6.0 | 500 |
| KPEBM12X025 | KPEBG12X025SS | KPEBL12X025SS | 16-25 | 6.0 | 500 |
| KPEBM12X032 | KPEBG12X032SS | KPEBL12X032SS | 20-32 | 6.0 | 500 |
| KPEBM12X040 | KPEBG12X040SS | KPEBL12X040SS | 25-40 | 6.0 | 500 |
| KPEBM12X050 | KPEBG12X050SS | KPEBL12X050SS | 32-50 | 6.0 | 500 |
| KPEBM12X060 | KPEBG12X060SS | KPEBL12X060SS | 40-60 | 6.0 | 400 |
| KPEBM12X070 | KPEBG12X070SS | KPEBL12X070SS | 50-70 | 6.0 | 400 |
| KPEBM12X080 | KPEBG12X080SS | KPEBL12X080SS | 60-80 | 6.0 | 400 |
| KPEBM12X090 | KPEBG12X090SS | KPEBL12X090SS | 70-90 | 6.0 | 400 |
| KPEBM12X100 | KPEBG12X100SS | KPEBL12X100SS | 80-100 | 6.0 | 400 |
| KPEBM12X110 | KPEBG12X110SS | KPEBL12X110SS | 90-110 | 6.0 | 300 |
| KPEBM12X120 | KPEBG12X120SS | KPEBL12X120SS | 100-120 | 6.0 | 300 |
| KPEBM12X130 | KPEBG12X130SS | KPEBL12X130SS | 110-130 | 6.0 | 300 |
| KPEBM12X140 | KPEBG12X140SS | KPEBL12X140SS | 120-140 | 6.0 | 300 |
| KPEBM12X150 | KPEBG12X150SS | KPEBL12X150SS | 130-150 | 6.0 | 200 |
| KPEBM12X160 | KPEBG12X160SS | KPEBL12X160SS | 140-160 | 6.0 | 200 |
Available in packed and bulk stock. Other packaging methods available.
Clamps meet or exceed DIN3017.
More SIZES AVAILABLE UPON REQUEST.
