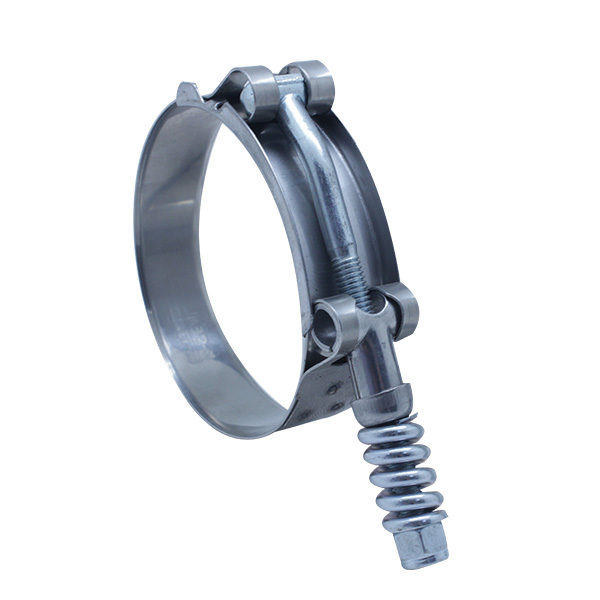

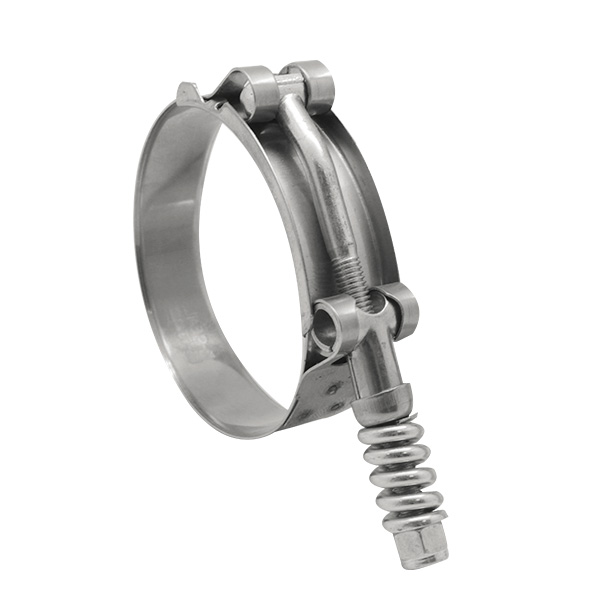

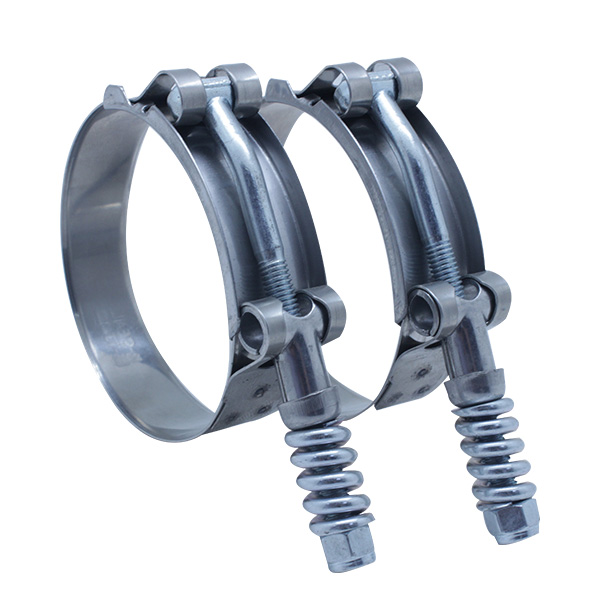

Spring loaded T-Bolt Clamps

Spring-loaded T-bolt clamps are designed to compensate for the expansion and contraction of hose caused by temperature and/or hose cold flow. Typical installations include silicone hoses on charge air cooling/air to air, after cooling system, and primary engine coolant system. Locknut rated temp.250℉

K-SEAL code

Band & Bridge

Trunnion

Spring, Bolt & Nut

Corrosion Resistance

Suggest Installation Torque(Nm)

TBSHXXXJ-K

301SS

301SS

glavanized steel

Good

5.6-6.8Nm

TBSFXXXJ-K

304SS

304SS

glavanized steel

Good

5.6-6.8Nm



Size Inches(") Millimeters(mm)
Nominal Min. Max. Nominal Min. Max.
156 1.50  1.31  1.56  38 33 40
187 1.75  1.62  1.87  44 41 47
206 2.00  1.81  2.06  51 46 52
225 2.15  1.94  2.25  55 49 57
237 2.25  2.06  2.37  57 52 60
250 2.40  2.19  2.50  61 56 64
262 2.50  2.31  2.62  64 59 67
287 2.75  2.56  2.87  70 65 73
312 3.00  2.81  3.12  76 71 79
337 3.25  3.06  3.37  83 78 86
359 3.50  3.28  3.59  89 83 91
387 3.78  3.56  3.87  96 90 98
394 3.85  3.63  3.94  98 92 100
412 4.00  3.81  4.12  102 97 105
437 4.25  4.06  4.37  108 103 111
462 4.50  4.31  4.62  114 109 117
487 4.75  4.56  4.87  121 116 124
512 5.00  4.81  5.12  127 122 130
537 5.25  5.06  5.37  133 129 136
562 5.50  5.31  5.62  140 135 143
587 5.75  5.56  5.87  146 141 149
612 6.00  5.81  6.12  152 148 155
637 6.25  6.06  6.37  159 154 162
662 6.50  6.31  6.62  165 160 168
687 6.75  6.56  6.87  171 167 174
712 7.00  6.81  7.12  178 173 181
737 7.25  7.06  7.37  184 179 187
762 7.50  7.31  7.62  191 186 194
787 7.75  7.56  7.87  197 192 200
812 8.00  7.81  8.12  203 198 206
837 8.25  8.06  8.37  210 205 213
919 9.00  8.61  9.19  229 219 233
1113 11.00  10.55  11.13  279 268 283
1313 13.00  12.55  13.13  330 319 334

Available in packed and bulk stock. Other packaging methods available.

Clamps meet or exceed SAE J1508 Type TBSL .

More SIZES AVAILABLE UPON REQUEST.
