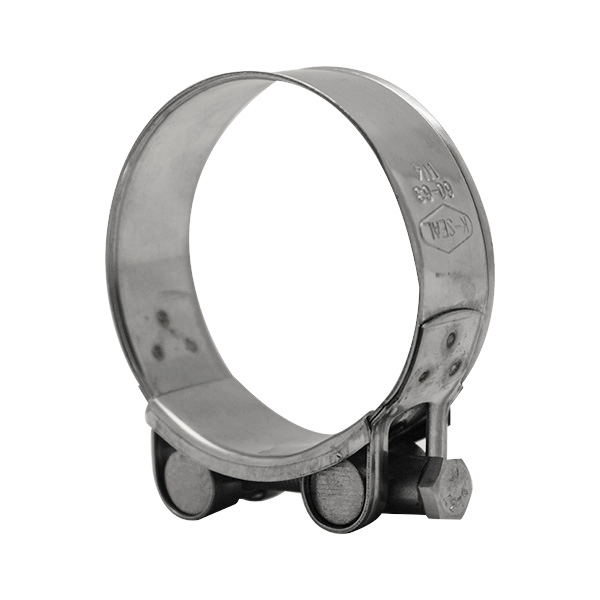

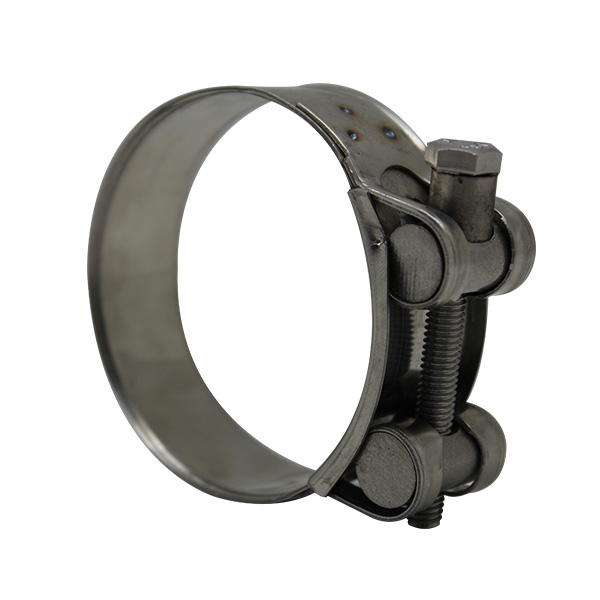

Heavy Duty Single Bolt Single Band Clamp

Heavy Duty Single Bolt Single Band Clamp

1) A very strong heavy duty band clamp with high levels of band tensile force

2) Beveled edge and bridge provide optimal hose protection

3) Solid metal rollers increase the strength of the bands

4) Socket head screws allow for easy installation

5) Welded construction increase the security and reliability.

K-SEAL code	Band	Housing	Screw	Corrosion Resistance	Suggest Installation Torque(Nm)
KMxXxx(W1)	glavanized steel	glavanized steel	glavanized steel	Ordinary	See table
KBMxXxx(W2)	201 SS	201 SS	galvanized steel	Good	See table
KGMxXxxSS(W4)	AISI 304 SS	AISI 304 SS	AISI 304 SS	Better	See table
KLMxXxxSS(W5)	AISI 316 SS	AISI 316 SS	AISI 316 SS	Best	See table

Part Number W1 Material	Part Number W2 Material	Part Number W4 Material	Part Number W5 Material	Diameter (mm)	W1	Screw	W2,W4,W5	Screw	Suggest Installation Torque(Nm)	QTY/Carton
Part Number W1 Material	Part Number W2 Material	Part Number W4 Material	Part Number W5 Material	Diameter (mm)	Thickness X Width(mm)	Screw	Thickness X Width(mm)	Screw	Suggest Installation Torque(Nm)	QTY/Carton
KM5X019	KBM5X019SS	KGM5X019SS	KLM5X019SS	17-19	0.6×18	M5X40	0.6×18	M5X40	4.5	250
KM5X022	KBM5X022SS	KGM5X022SS	KLM5X022SS	20-22	0.6×18	M5X40	0.6×18	M5X40	4.5	250
KM5X025	KBM5X025SS	KGM5X025SS	KLM5X025SS	23-25	0.6×18	M5X40	0.6×18	M5X40	4.5	250
KM5X028	KBM5X028SS	KGM5X028SS	KLM5X028SS	26-28	0.6×18	M5X40	0.6×18	M5X40	4.5	250
KM6X031	KBM6X031SS	KGM6X031SS	KLM6X031SS	29-31	0.8×20	M6X50	0.6×20	M6X50	9	250
KM6X035	KBM6X035SS	KGM6X035SS	KLM6X035SS	32-35	0.8×20	M6X50	0.6×20	M6X50	9	250
KM6X039	KBM6X039SS	KGM6X039SS	KLM6X039SS	36-39	0.8×20	M6X50	0.6×20	M6X50	9	250
KM6X043	KBM6X043SS	KGM6X043SS	KLM6X043SS	40-43	0.8×20	M6X50	0.6×20	M6X50	9	250
KM6X047	KBM6X047SS	KGM6X047SS	KLM6X047SS	44-47	1.2×22	M6X55	0.8×22	M6X60	9	100
KM6X051	KBM6X051SS	KGM6X051SS	KLM6X051SS	48-51	1.2×22	M6X55	0.8×22	M6X60	9	100
KM6X055	KBM6X055SS	KGM6X055SS	KLM6X055SS	52-55	1.2×22	M6X55	0.8×22	M6X60	9	100
KM6X059	KBM6X059SS	KGM6X059SS	KLM6X059SS	56-59	1.2×22	M6X55	0.8×22	M6X60	9	100
KM6X063	KBM6X063SS	KGM6X063SS	KLM6X063SS	60-63	1.2×22	M6X55	0.8×22	M6X60	9	100
KM6X067	KBM6X067SS	KGM6X067SS	KLM6X067SS	64-67	1.2×22	M6X55	0.8×22	M6X60	18	100
KM8X073	KBM8X073SS	KGM8X073SS	KLM8X073SS	68-73	1.5×24	M8X70	0.8×24	M8X70	18	100
KM8X079	KBM8X079SS	KGM8X079SS	KLM8X079SS	74-79	1.5×24	M8X70	0.8×24	M8X70	18	100
KM8X085	KBM8X085SS	KGM8X085SS	KLM8X085SS	80-85	1.5×24	M8X70	0.8×24	M8X70	18	100
KM8X091	KBM8X091SS	KGM8X091SS	KLM8X091SS	86-91	1.5×24	M8X70	0.8×24	M8X70	18	100
KM8X097	KBM8X097SS	KGM8X097SS	KLM8X097SS	92-97	1.5×24	M8X70	0.8×24	M8X70	18	100
KM8X103	KBM8X103SS	KGM8X103SS	KLM8X103SS	98-103	1.5×24	M8X75	0.8×24	M8X80	18	100
KM8X112	KBM8X112SS	KGM8X112SS	KLM8X112SS	104-112	1.5×24	M8X75	0.8×24	M8X80	18	100
KM8X121	KBM8X121SS	KGM8X121SS	KLM8X121SS	113-121	1.5×24	M8X75	0.8×24	M8X80	18	50
KM8X130	KBM8X130SS	KGM8X130SS	KLM8X130SS	122-130	1.5×24	M8X75	0.8×24	M8X80	18	50
KM10X139	KBM10X139SS	KGM10X139SS	KLM10X139SS	131-139	1.7×26	M10X85	1.0×26	M10X90	29	50
KM10X148	KBM10X148SS	KGM10X148SS	KLM10X148SS	140-148	1.7×26	M10X85	1.0×26	M10X90	29	50
KM10X161	KBM10X161SS	KGM10X161SS	KLM10X161SS	149-161	1.7×26	M10X85	1.0×26	M10X90	29	50
KM10X174	KBM10X174SS	KGM10X174SS	KLM10X174SS	162-174	1.7×26	M10X85	1.0×26	M10X90	29	50
KM10X187	KBM10X187SS	KGM10X187SS	KLM10X187SS	175-187	1.7×26	M10X100	1.0×26	M10X100	29	50
KM10X200	KBM10X200SS	KGM10X200SS	KLM10X200SS	188-200	1.7×26	M10X100	1.0×26	M10X100	29	50
KM10X213	KBM10X213SS	KGM10X213SS	KLM10X213SS	201-213	1.7×26	M10X100	1.0×26	M10X100	29	50
KM10X226	KBM10X226SS	KGM10X226SS	KLM10X226SS	214-226	1.7×26	M10X100	1.0×26	M10X100	29	50
KM10X239	KBM10X239SS	KGM10X239SS	KLM10X239SS	227-239	1.7×26	M10X100	1.0×26	M10X100	29	50
KM10X252	KBM10X252SS	KGM10X252SS	KLM10X252SS	240-252	1.7×26	M10X100	1.0×26	M10X100	29	50

Available in packed and bulk stock. Other packaging methods available.

Clamps meet or exceed DIN3017.

More SIZES AVAILABLE UPON REQUEST.
