Fuel Line Mini Clamps

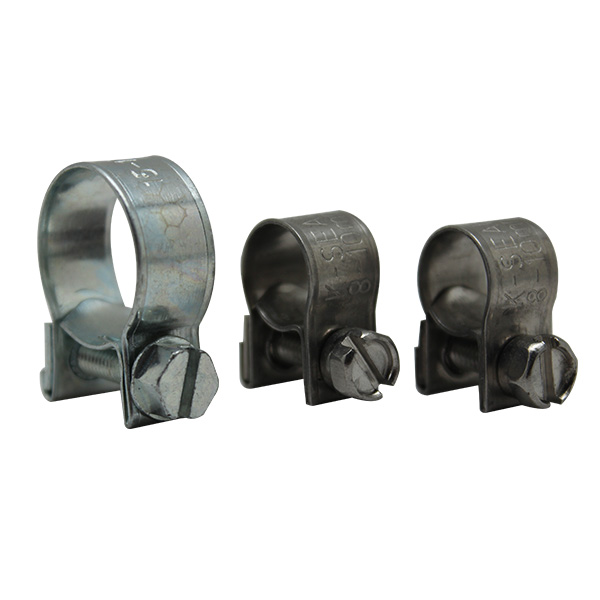

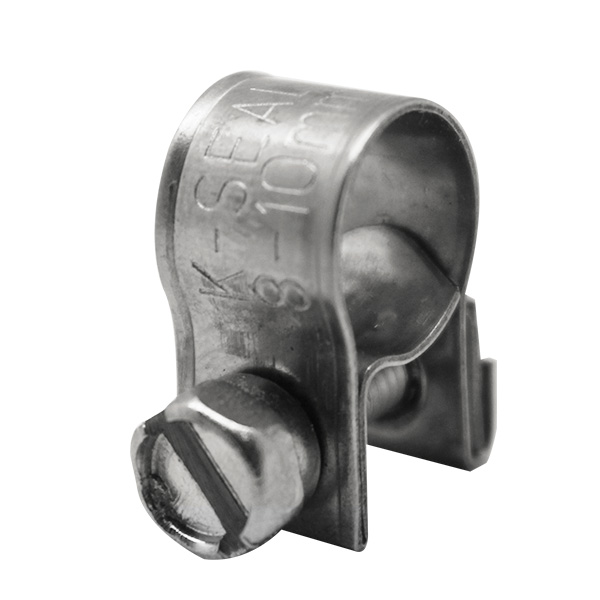

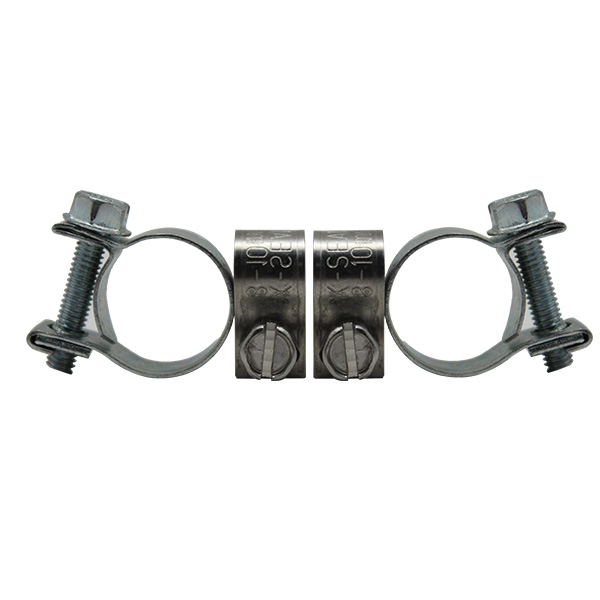

Mini Clamps, also known as nut & bolt clips. These clips feature solid, rolled edge bands with a special nut and bolt tightening design and are designed to provide uniform sealing pressure required on fuel injection hoses.

K-SEAL code	Band	Housing	Screw	Corrosion Resistance	Suggest Installation Torque(Nm)
KMCxx	glavanized steel	glavanized steel	glavanized steel	Ordinary	See table
KMCGxxSS	304 SS	304 SS	304 SS	Good	See table

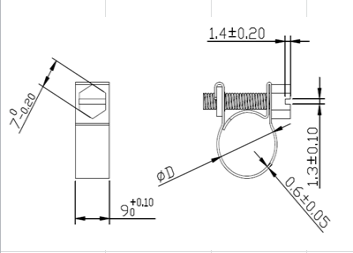

Part No.（W1）	Part No. (W4)	Adjustment (mm)	Bandwidth(mm)	Band Thickness (mm)	Recommended Torque(Nm)	QTY/Carton
KMC0608	KMCG0608SS	6-8	9SS	0.6SS	1.5SS	1000
KMC0709	KMCG0709SS	7-9	9SS	0.6SS	1.5SS	1000SS
KMC0810	KMCG0810SS	8-10	9SS	0.6SS	1.5SS	1000SS
KMC0911	KMCG0911SS	9-11	9SS	0.6SS	1.5SS	1000SS
KMC1012	KMCG1012SS	10-12	9SS	0.6SS	1.5SS	1000SS
KMC1113	KMCG1113SS	11-13	9SS	0.6SS	1.5SS	1000SS
KMC1214	KMCG1214SS	12-14	9SS	0.6SS	1.5SS	1000SS
KMC1315	KMCG1315SS	13-15	9SS	0.6SS	1.5SS	500SS
KMC1416	KMCG1416SS	14-16	9SS	0.6SS	1.5SS	500SS
KMC1517	KMCG1517SS	15-17	9SS	0.6SS	1.5SS	500SS
KMC1618	KMCG1618SS	16-18	9SS	0.6SS	1.5SS	500SS
KMC1719	KMCG1719SS	17-19	9SS	0.6SS	1.5SS	500SS
KMC1820	KMCG1820SS	18-20	9SS	0.6SS	1.5SS	500SS
KMC1921	KMCG1921SS	19-21	9SS	0.6SS	1.5SS	500SS
KMC2022	KMCG2022SS	20-22	9SS	0.6SS	1.5SS	500SS
KMC2123	KMCG2123SS	21-23	9SS	0.6SS	1.5SS	500SS
KMC2224	KMCG2224SS	22-24	9SS	0.6SS	1.5SS	500SS
KMC2325	KMCG2325SS	23-25	9SS	0.6SS	1.5SS	500SS
KMC2426	KMCG2426SS	24-26	9SS	0.6SS	1.5SS	500SS
KMC2527	KMCG2527SS	25-27	9SS	0.6SS	1.5SS	500SS
KMC2628	KMCG2628SS	26-28	9SS	0.6SS	1.5SS	500SS
KMC2729	KMCG2729SS	27-29	9SS	0.6SS	1.5SS	500SS
KMC2830	KMCG2830SS	28-30	9SS	0.6SS	1.5SS	500SS
KMC2931	KMCG2931SS	29-31	9SS	0.6SS	1.5SS	500SS
KMC3032	KMCG3032SS	30-32	9SS	0.6SS	1.5SS	500SS
KMC3133	KMCG3133SS	31-33	9SS	0.6SS	1.5SS	500SS
KMC3234	KMCG3234SS	32-34	9SS	0.6SS	1.5SS	500SS
