5/8 Wide Constant Tension Clamps rfq

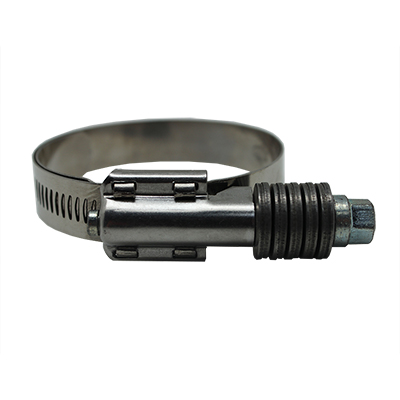

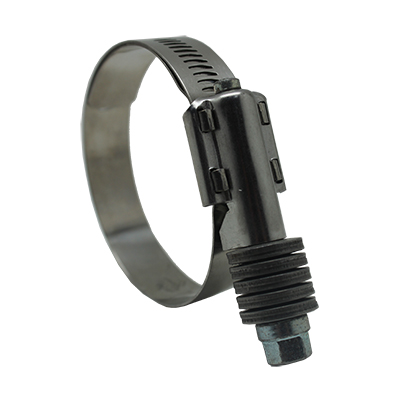

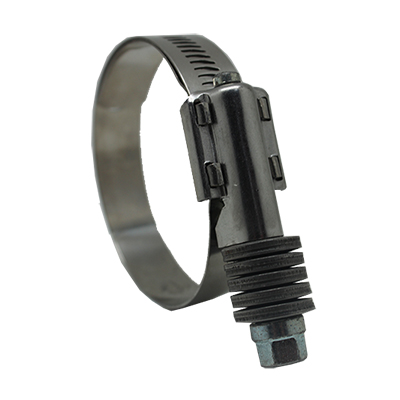

5/8 Wide Constant Tension Clamps



This type of clamps use a Belleville spring.This unique design  can  eliminate “cold flow” leakage that adjusts with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. This is an excellent choice for thermal compensation and fluctuating temperature applications. The larger, heavier-gauge, precision-formed springs provide higher rates of band tension and adjustment for a more dependable seal. Inner liner protects against shearing of the hose surfaces.



K-SEAL code  Band     Housing    Screw Washers    Suggest Installation Torque(Nm)
SLHDFXX-XX-15.8-K 300SS 300SS galvanized steel 410SS 11N.m
SLHDGXX-XXSS-15.8-K 300SS 300SS 300SS 410SS 11N.m

Size Ref Diameter Range QTY/Carton
Min(inch) Max(inch) Min (mm) Max (mm)
212 1-1/4 2-1/8 32 54 500
262 1-3/4 2-5/8 45 67 400
312 2-1/4 3-1/8 57 79 400
362 2-3/4 3-5/8 70 92 400
412 3-1/4 4-1/8 83 105 300
462 3-3/4 4-5/8 96 118 300
512 4-1/4 5-1/8 108 130 300
562 4-3/4 5-5/8 121 143 200
612 5-1/4 6-1/8 134 156 200
662 5-3/4 6-5/8 146 168 200
712 6-1/4 7-1/8 159 181 200
762 6-3/4 7-5/8 172 194 200
812 7-1/4 8-1/8 184 206 200
862 7-3/4 8-5/8 197 219 200
912 8-1/4 9-1/8 210 232 200

Available in packed and bulk stock. Other packaging methods available.

Clamps meet or exceed SAE J1508 Type SLHD.
