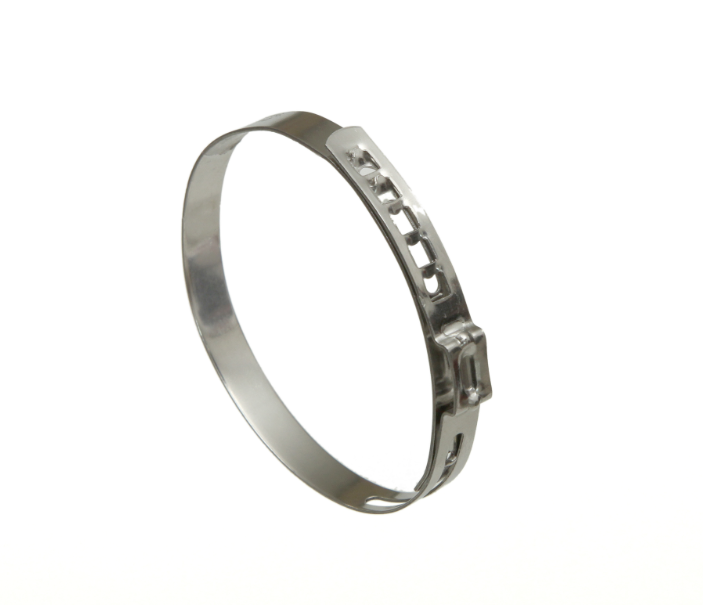

Adjustable CV-Boot Hose Clamp
Interlock hooks design provide strong, secure band joining
--- Tool grip lobes on ear prevent mis-crimps.
--- Smooth edge, no damage to parts when installed
--- Low profile and compact design allow easy accessibility
---Available as “Flat”—easy shipping and storing.
|
K-SEAL code |
Open Diameter(mm) |
Closed Diameter(mm) |
K-SEAL code |
Open Diameter(mm) |
Closed Diameter(mm) |
|
|

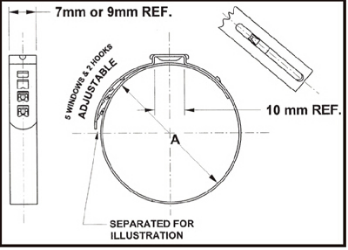

7mm bandwidth |
9mm bandwidth |
|||||
|
KV 7030 |
30 |
22.1 |
KV 9072 |
72 |
64.1 |
|
|
KV 7035 |
35 |
27.1 |
KV 9078 |
78 |
70.1 |
|
|
KV 7040 |
40 |
32.1 |
KV 9080 |
80 |
72.1 |
|
|
KV 7045 |
45 |
37.1 |
KV 9084 |
84 |
76.1 |
|
|
KV 7050 |
50 |
42.1 |
KV 9090 |
90 |
82.1 |
|
|
KV 7056 |
56 |
48.1 |
KV 9092 |
92 |
84.1 |
|
|
KV 7062 |
62 |
54.1 |
KV 9096 |
96 |
88.1 |
|
|
KV 7068 |
68 |
60.1 |
KV 9102 |
102 |
94.1 |
|
|
KV 7074 |
74 |
66.1 |
KV 9108 |
1 08.0 |
100.1 |
|
|
KV 7080 |
80 |
72.1 |
KV 9112 |
112 |
104.1 |
|
|
KV 7086 |
86 |
78.1 |
KV 9114 |
114 |
106.1 |
|
|
KV 7092 |
92 |
84.1 |
KV 9120 |
120 |
112.1 |
|
|
KV 7098 |
98 |
90.1 |
KV 9126 |
126 |
118.1 |
|
|
KV 7104 |
104 |
96.1 |
Available in flat configuration. Other sizes and material available upon request. |
|||
|
KV 7110 |
110 |
102.1 |
||||
|
KV 7116 |
116 |
108.1 |
||||
Available in packed and bulk stock. Other packaging methods available.
Clamps meet or exceed SAE Type SEC.
More SIZES AVAILABLE UPON REQUEST.
